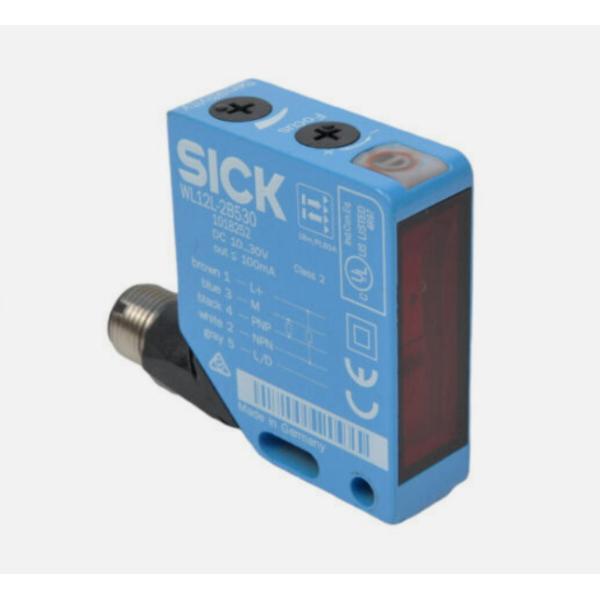

SICK WL12L-2B530 Photoelectric Sensor 1018252

  • 1
  • 2
  • 3

Brand Name : Sick

Model Number : WL12L-2B530

Certification : CE

Place of Origin : Germany

MOQ : 1

Price : variable

Payment Terms : T/T

Supply Ability : 30PCS/WEEKS

Delivery Time : Negotiate

Packaging Details : Carton

Description : ODM Photoelectric Retro-Reflective Sensor 1018252

Part no : 1018252

Type of light : Visible red light

Light spot size (distance) : Ø 0.8 mm (300 mm)

Adjustment : Potentiometer

Housing material : Metal

Front screen material : material

Ambient operating temperature : –10 °C ... +50 °C

Ambient temperature, storage : –25 °C ... +75 °C

Contact Now

SICK WL12L-2B530 Photoelectric Sensor 1018252

Features

Functional principle Photoelectric retro-reflective sensor
Functional principle detail Autocollimation
Sensing range max. 0 m ... 18 m 1)
Polarisation filters Yes
Emitted beam 　
Light source Laser 2)
Type of light Visible red light
Light spot size (distance) Ø 0.8 mm (300 mm)
Key laser figures 　
Normative reference EN 60825-1:2014, IEC 60825-1:2007
Laser class 2 3)
Key LED figures 　
Wave length 650 nm
Adjustment Potentiometer
Special features Focusable from 300 mm to infinite
Special applications Detecting small objects, Detection of objects moving at high speeds
Items supplied 2 x clamps BEF-KH-W12, incl. screws

Electrical data

Supply voltage UB 10 V DC ... 30 V DC 1)
Ripple < 5 Vpp 2)
Current consumption 55 mA 3)
Protection class III
Digital output 　
Type PNPNPN 4) 5)
Switching mode Light switching, Dark switching 4) 5)
Switching mode selector Selectable via L/D control cable
Signal voltage PNP HIGH/LOW Uv - < 2.9 V, Uv V / 0 V <= 1.5 V
Signal voltage NPN HIGH/LOW Uv - < 2.9 V, Uv V / 0 V <= 1.5 V
Output current Imax. ≤ 100 mA
Response time ≤ 200 µs 6)
Switching frequency 2,500 Hz 7)
Circuit protection A 8)
C 9)
D 10)

Mechanical data

Housing Rectangular
Dimensions (W x H x D) 15 mm x 49 mm x 41.5 mm
Connection Male connector M12, 5-pin
Material
Housing Metal
Front screen Plastic, PMMA
Weight 130 g

Ambient data

Enclosure rating IP67
IP69K
Ambient operating temperature –10 °C ... +50 °C
Ambient temperature, storage –25 °C ... +75 °C
UL File No. NRKH.E181493 & NRKH7.E181493
